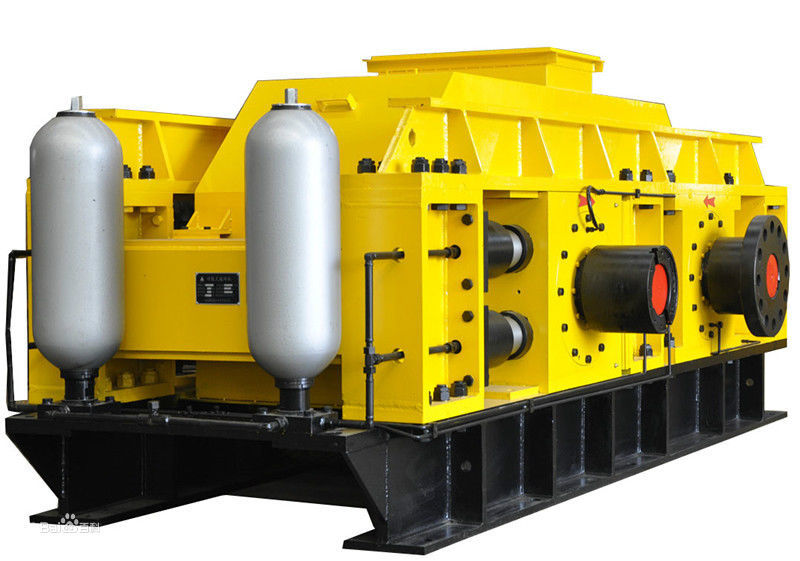

Hydraulic Roller Crusher
Hydraulic Roller Crusher
product Description
the Hydraulic Roller Crusher product is applied crushing various medium hardness materials such limestone ,slag ,coal etc .in metallurgy, cement, chemistry and other industries for primary and secondary crushing.
Working Principle
the motor drives the fixed roller and movable roller work via reducer ,V-belts or coupling .Materials are put into the space between the two roller inward turning the input materials are crushed ,pressed ground, and at last come out from the from
the base of the machine.
Advantages and Features
1.Compact structure .low noise and efficient
2.Adjusting the pressure and easily
3.low cost maintenance and easy to maintain
4.Easy to install and only need simple foundation
5.Self-protection,the parts can not be damaged when hard materials such as the metals goes into the crushing cavity.
Main technical parameters
Model |
Roller dia.(mm) | Roller width(mm) | Feeding Size(mm) | Discharging Size(mm) | Capacity (t/y) | Feed opening size(mm) | Motor power (kw) |
Overall dimension (mm) |
weigh (kg) |
GP86-37Y |
800 | 600 | <30 | 0.5-10 | 15-45 | 600X500 | 18.5x2 |
3490x2884x1035 |
8600 |
GP118-90Y | 1100 | 800 | <50 | 0.5-10 | 45-100 | 800X700 | 45x2 | 4398x3354x1200 | 176000 |
GP1410-180Y | 1400 | 1000 | <60 | 0.5-10 | 100-200 | 1000X900 | 90x2 | 5800x3850x2100 | 36000 |
2PG400 | 400 | 252 | <30 | 3-8 | 3-5 | 100X200 | 5.5x2 | 1850x1100x800 | 1300 |
2PG600 | 600 | 400 | <40 | 3-8 | 5-20 | 370X400 | 11x2 | 2555x2490x1050 | 4300 |
2PG800 | 800 | 600 | <60 | 3-10 | 15-40 | 600X500 | 22x2 | 4390x3354x1035 | 8500 |
2PG1000 | 1000 | 700 | <80 | 3-12 | 20-50 | 700X600 | 30x2 | 4398x3354xx1190 | 12000 |
2PG1200 | 1200 | 750 | <90 | 3-14 | 30-80 | 800X600 | 45x2 | 4547x3653x1478 | 17000 |
2PG1500 | 1500 | 800 | <100 | 3-15 | 40-100 | 800X800 | 75x2 | 4832x4037x1765 | 27000 |
2PG1800 | 1800 | 900 | <130 | 3-18 | 60-130 | 800X800 | 90x2 | 5645x3850x2092 | 30000 |
