Mobile Crusher Introduction
Mobile cone crusher
Mobile cone crusher
The Mobile Cone Crusher offers new business opportunities for contractors, quarry operators, recycling and mining applications. It provides customers with efficient, low-cost project plans that are not subject to environmental constraints.
Mobile cone crusher
The Mobile Cone Crusher offers new business opportunities for contractors, quarry operators, recycling and mining applications. It provides customers with efficient, low-cost project plans that are not subject to environmental constraints.
Application areas:
feature:
Features of the portable cone crusher:
1. Integrated design

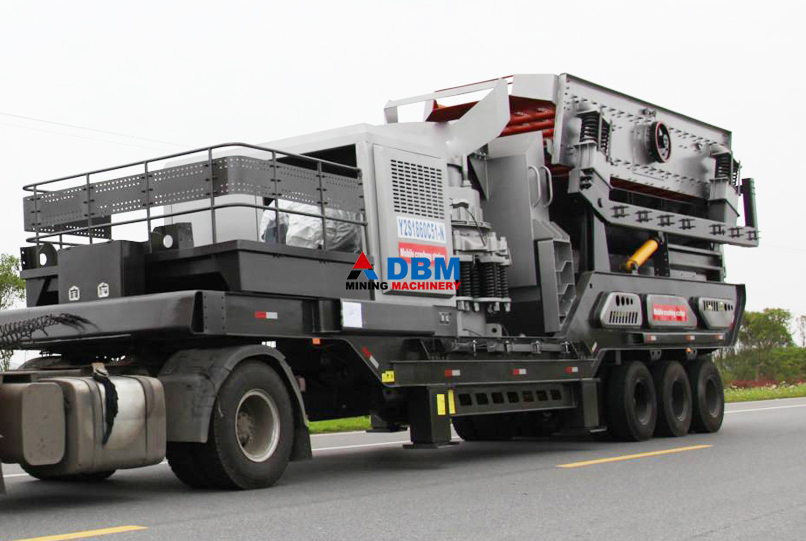

2. Vehicle-mounted
3. Fast road transport
4. Truck with support feet, quick installation
success case
African coal Gang stone production line
Bulk stones are evenly fed into jaw crusher by trough feeder for crushing, and crushed stones are further crushed by belt conveyor to impact crusher; fine crushed stones are fed into vibration screen by belt conveyor for screening.
[Equipment configuration]: trough feeder, jaw crusher, impact crusher, vibration screen, conveyor.
[Processing Material]: Gangue, Rock, River Pebble
[Productivity] 10.5-300 t/h
Chongqing Guang'an Stone Production Site
The material is fed into the vibrating feeder. The vibrating feeder feeds the material evenly into the jaw crusher. The jaw crusher crushes the stone in segments. Then the crushed stone is fed into the two-stage crusher through the conveyor for segment crushing. The crushed material is classified and screened by circular vibration screen, and the material larger than 40 mm is returned to the two-stage crusher. Crusher, material below 40mm is sent to shaping machine by belt conveyor.
[Equipment configuration]: Vibration feeder, jaw crusher, two-stage crusher, vibration screen, belt conveyor, centralized electronic control and other equipment.
[Processing Material]: aggregate of hard limestone, granite, basalt, River pebble, metallurgy, slag and other materials
[Production capacity]: 600-700 tons per hour
Portable cone crusher parameters:
model | DBM100 | DBM150 | DBM200 |
Shipping length (mm) | 12500 | 13500 | 14000 |
|
Shipping height (mm)
|
4000
|
4500
|
4800
|
Shipping width (mm) | 2500 | 2800 | 3000 |
Maximum height (mm) | 6000 | 6500 | 6500 |
|
Maximum width (mm)
|
2800
|
3000
|
3200
|
|
Belt conveyor height (mm)
|
4000
|
4000
|
4200
|
|
Total weight (tons)
|
42
|
46
|
57
|
Portable cone crusher configuration:
|
model
|
Vibrating screen | Cone crusher | Belt conveyors | Wheel configuration |
generator
|
Processing capacity
(t / h) |
Motor Power
(kw) |
|
DBM100
|
3YK1548 | H120 C / M / F | B500 * 7M | Double axis |
Optional
|
50-200
|
75
|
|
DBM150
|
3YK1848 | H180 C / M / F | B650 * 7M | Double axis |
Optional
|
70-300
|
212.5-220.5
|
|
DBM200
|
3YK2160 | H250 C / M / F | B800 * 8M | Triaxial |
Optional
|
140-450
|
257.5-264.5
|
