high-efficient fine crusher
Review
Description
high-efficient fine crusher

high-efficient fine crusher

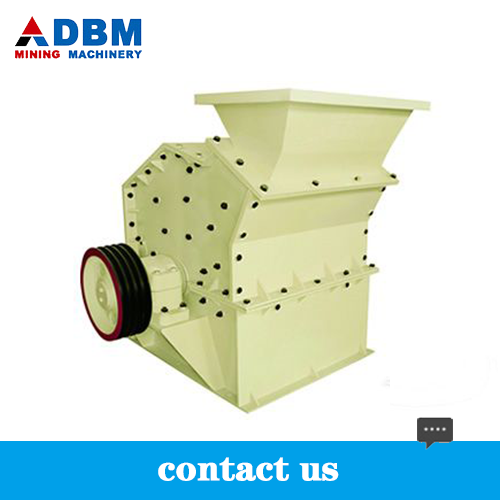

DBM high-efficient fine crusher, a kind of crushing machinery, can make finer sand than ordinary sand making machines. The machine is a patented product developed on the basis of our former sand making machines, and can fully satisfy market requirements. Currently it is extensively applied in the field of sand making, building materials, metallurgy and chemical etc.
Currently it is extensively applied in the field of sand making, building materials, metallurgy and chemical etc.
1. Simple structure, simplified sand making process(change tertiary crushing to secondary crushing), reliable performance, convenient maintenance.
2. Uniform granular, long hammer life, strong production capacity.
3. Low operating cost, high efficiency.
Applications:
Features:
High-efficient Fine Crusher Performance and Features
2. Uniform granular, long hammer life, strong production capacity.
3. Low operating cost, high efficiency.
high-efficient fine crusher

Lafarge's annual production capacity of 1 million tons of limestone sand production line
[production time]: 2013
[Location]: Africa, South Africa
[material]: limestone
[Yield]: 500t/h
[Equipment configuration]: feeder, jaw crusher, impact crusher, impact crusher and circular vibrating screen
[Location]: Africa, South Africa
[material]: limestone
[Yield]: 500t/h
[Equipment configuration]: feeder, jaw crusher, impact crusher, impact crusher and circular vibrating screen

[500 tons of limestone crushing production line in Africa Congo
[production time]: 2018
[Location]: Africa, South Africa
[material]: limestone
[Yield]: 500t/h
[Equipment configuration]: JC549 jaw crusher, HCS359A impact crusher, ZSW600*130 vibrating feeder, 2YK2475 circular vibrating screen
[Location]: Africa, South Africa
[material]: limestone
[Yield]: 500t/h
[Equipment configuration]: JC549 jaw crusher, HCS359A impact crusher, ZSW600*130 vibrating feeder, 2YK2475 circular vibrating screen
Specifications of High-efficient Fine Crusher
Model | Feeding Opening Size (mm) | Max. Feeding Size (mm) |
Discharging Size (mm) | Adjustable Width of Rod (mm) | Capacity(t/h) |
Powder (kw) |
|
Cement Clinker | Limestone | ||||||
Φ800*400 | 400*185 | <180 | <5 | 0-30 | 20-30 | 30-35 | 37 |
Φ800*600 | 500*250 | <180 | <5 | 0-30 | 35-40 | 40-45 | 45 |
Φ800*800 | 550*330 | <180 | <5 | 0-30 | 40-45 | 45-50 | 45 |
Φ1000*1000 | 1000*350 | <180 | <5 | 0-30 | 50-55 | 65-75 | 55 |
Φ1200*1000 | 1200*400 | <180 | <5 | 0-30 | 65-80 | 75-100 | 100/110 |
Φ1200*1200 | 1200*450 | <180 | <5 | 0-30 | 75-90 | 90-110 | 110/132 |
Φ1400*1400 | 1500*500 | <190 |
<5 | 0-30 | 90-130 |
110-150 |
160 |
Φ1600*1600 | 1600*550 | <190 |
<5 | 0-30 | 180-210 |
190-250 |
250 |
Φ1800*1800 | 1800*800 | <190 |
<5 | 0-30 | 250-270 |
280-310 |
315 |
