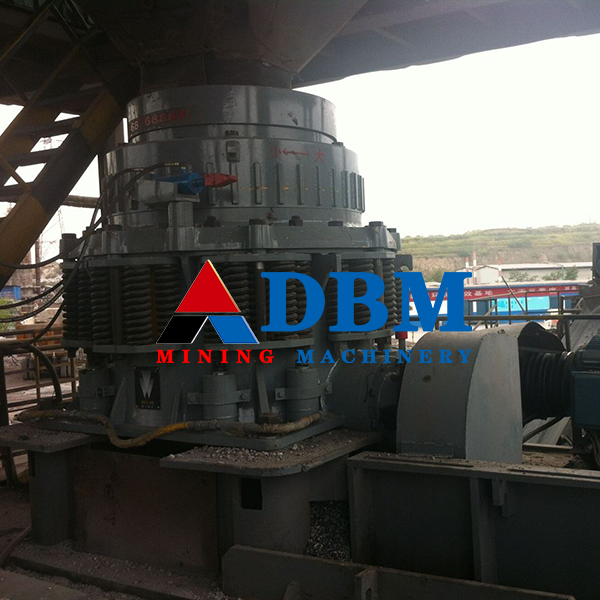

SPRING CONE CRUSHER
SPRING CONE CRUSHER Overview
Cone Crusher is widely used in metallurgical industry, building materials industry, construction industry, chemical industry and silicate industry, applicable to crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of big crushing ratio, high efficiency, large capacity, low cost, easy adjustment, and used economically, etc. The reasonable part selection and structural design extend crushers’ usage life, and the final products of uniform particle size reduce the cycle load, the medium to large-sized crusher, adopts the hydraulic clear-cavity system, reduces downtime, and various types of crusher cavity to better adapt to users’ needs.
Spring Cone Crusher Advantages and features:
1.High productivity; high quality;
2.Less machine stop time;
3.Easy maintenance and lost cost;
4.Unique crushing ability in primary, secondary and tertiary crushing.
Spring Cone Crusher Working Principle:
During operation, the motor drives the eccentric shaft shells to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, The ores and rocks will be pressed and crooked and crushed.
Typical Case
Haorui Indonesia produces 300 tons of andesite sand production line
[production time]: 2013
[Location]: Indonesia
[Materials]: Andesite
[Yield]: 300t/h
[Equipment configuration]: feeder, jaw crusher, cone crusher, impact crusher, vibrating screen and iron remover
Africa 800 tons / hour limestone crushing production line
[production time]: 2016
[Location]: Africa
[Material]: Limestone
[Yield]: 800t / h
[Equipment configuration]: jaw crusher, hydraulic cone crusher, feeder, vibrating screen, feeding sieve, dust collector, etc.
Main Technical Parameters of Spring Cone Crusher
Model |
Moving Cone Diameter (mm) |
Feeding Opening Size (mm) | Discharging Opening Size (mm) | Max. Feeding Size (mm) | Capacity (mm) | Eccentric Rotating Speed (r/min) | Electric Motor Powder (kw) |
Over Dimension (mm) |
PYB-600 | 600 | 75 | 12-25 | 65 | 12-25 | 356 | 30 | 2800*1300*1700 |
PYD-600 | 40 | 2-13 | 35 | 5-23 | ||||
PYB-900 | 900 | 135 | 15-50 | 115 | 50-90 | 333 | 55 | 3050*1640*2350 |
PYZ-900 | 70 | 5-20 | 60 | 20-65 | ||||
PYD900 | 50 | 3-13 | 50 | 15-50 | ||||
PYB-1200 | 1200 | 170 | 20-50 | 145 | 110-168 | 300 | 110 | 4152*2300*2980 |
PYZ-1200 | 115 | 8-25 | 100 | 42-135 | ||||
PYD-1200 | 60 | 3-15 | 50 | 18-105 | ||||
PYB-1750 | 1750 | 250 | 25-50 | 215 | 280-480 | 245 | 160 | 6020*2948*4190 |
PYZ-1750 | 215 | 10-30 | 185 | 115-320 | ||||
PYD-1750 | 100 | 5-15 | 85 | 75-230 | ||||
PYD-2200 | 2200 | 350 | 30-60 | 300 | 590-1000 | 220 | 260-280 | 7705*3432*4842 |
PYZ-2200 | 275 | 10-30 | 230 | 200-580 | ||||
PYD-2200 |
130 | 5-15 | 100 | 120-370 |
