PF Impact Crusher
Product review
Description

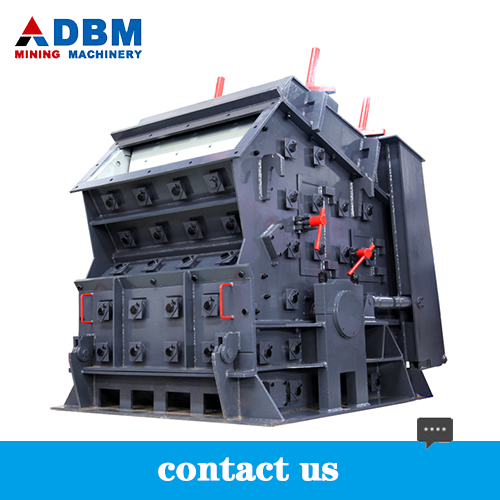

PF Impact Crusher
Product Description
By absorbing the advanced technology from the world, we researched and designed PF series impact crusher. It can be used to deal with materials whose size below 500mm and whose compression strength less than 320Mpa. Thus, it is widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on.
Applications：
Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombar thite, kaolin, gypsum, and graphite, etc.
Features：
1.High efficient Long service life
2.Strong structure Steady performance
3.Good final products Discharging opening is adjustable
4.No-board connection Easy to disassembly and maintain
Typical Case
800 tons of limestone crushing production line in Africa and South Africa
[production time]: at the end of 2014
[Location]: South Africa
[material]: limestone
[Yield]: 800t/h
[Equipment configuration]: JC555 jaw crusher, HCS679A impact crusher, 2YK3075 circular vibrating screen, ZSW600*150 vibrating feeder
[Location]: South Africa
[material]: limestone
[Yield]: 800t/h
[Equipment configuration]: JC555 jaw crusher, HCS679A impact crusher, 2YK3075 circular vibrating screen, ZSW600*150 vibrating feeder
300 tons of limestone crushing production line in South Africa
[production time]: 2016
[Location]: South Africa
[material]: limestone
[Yield]: 300 t/h
[Equipment configuration]: PE series jaw crusher, HC series impact crusher, ZSW series vibrating feeder and YK series circular vibrating screen, etc.
[Location]: South Africa
[material]: limestone
[Yield]: 300 t/h
[Equipment configuration]: PE series jaw crusher, HC series impact crusher, ZSW series vibrating feeder and YK series circular vibrating screen, etc.
This is a title
Model |
Rotor Φ×L (mm) |
Feed Opening (mm) | Max Feeding (mm) | Capacity (t/h) | Power (kw) | Motor Model |
Machine Size (mm) |
PF1010 |
Φ1000×1050 |
400×1080 | 350 | 50-80 | 6-75 | Y280S-6/75 |
2455×2086×2800 |
PF1210 |
Φ1250×1050 |
400×1080 | 350 | 60-120 | 6-110 | Y315L1-6/110 |
2590×2050×2810 |
PF1214 |
Φ1250×1400 |
400×1430 | 350 | 80-160 | 6-132 | Y315L2-6/132 |
2590×2400×2810 |
PF1315 | Φ1320×1500 | 860×1520 | 350 | 120-260 | 6-200 | Y355M3-6/200 | 2930×2760×3050 |
