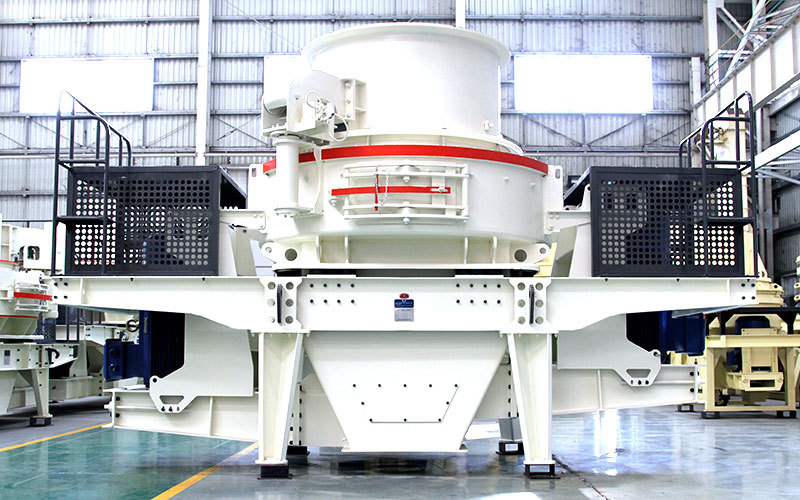

VSI Series vertical shaft impact crusher
Review
Description
INTRODUCTION OF INDUSTRIAL SAND-MAKING EQUIPMENT

VSI sand making machine
VSI sand-making machine is also called vertical shaft crusher, vertical shaft impact crusher, 5x sand-making machine, fifth generation sand-making machine, which is a new type of sand-making machine. It can make all kinds of rocks, sandstones and river pebbles into building sand with various granularity. The sand has uniform granularity and high compressive strength. It is far more in line with the building requirements than the sand produced by natural sand and ordinary hammer sander, and can improve the building quality. The equipment has the characteristics of reliable performance, reasonable design, convenient operation and high efficiency.
Feed Size Range:<50mm
Discharge Size Range:0-5mm
Scope of production capacity:60-520t/h
Scope of application:Widely used in large, smelting, building materials, highways, railways, water and chemical industries, etc.
Suitable for material range:River pebbles, quartzite, limestone, coal gangue, basalt, granite, diabase, etc.
Typical Case

Haorui Indonesia produces 300 tons of andesite sand production line
[production time]: 2013
[Location]: Indonesia
[Materials]: Andesite
[Yield]: 300t/h
[Equipment configuration]: feeder, jaw crusher, cone crusher, impact crusher, vibrating screen and iron remover

200 tons of river pebble crushing production line in Africa
[production time]: 2014
[Location]: Africa
[Materials]: River Pebble
[Production]: 200t/h
[Equipment configuration]: hydraulic cone crusher, VSI sand making machine, jaw crusher, circular vibrating screen and feeder
Technical Parameter
Model |
VSI-7611 |
VSI-8518 | VSI-9526 |
VSI-1140 | VSI-1145 | |
Throughput |
Waterfall and central feeding | 120-180 |
200-260 |
300-380 |
450-520 | 500-640 |
Centralized feeding | 60-90 |
100-130 |
150-190 |
225-260 | 250-360 | |
Maximum feed size(MM) |
Soft material | <35 |
<40 |
<45 |
<50 | <50 |
Hard material | <30 | <35 | <40 | <45 | <45 | |
speed(R/MIN) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | |
Dual motor power(KW) | 4-55*2 | 4-90*2 | 4-132*2 | 4-200*2 | 4-220*2 | |
Maximum profile size(MM) | 3700*2150*2100 | 4140*2280*2425 | 4560*2447*2778 | 5100*2700*3300 | 5000*2790*3320 | |
Power Supply | 380V-50HZ | |||||
Detection Range of Vibration Sensor | 0.1-20mm/s-Continuously adjustable | |||||
Hydraulic Lubrication Station | Dual oil pump motor power(KW) | 2*0.3 | ||||
Safeguard | Double oil pumps complementary oil supply, oil-free hydraulic automatic shutdown, water cooling, winter motor heating Qidong | |||||
Outline size(MM) | 820*520*1270 | |||||
Fuel tank heater power(KM) | 2 |
