Jaw crusher
Product review
Description
Introduction of Industrial Crushing Equipment

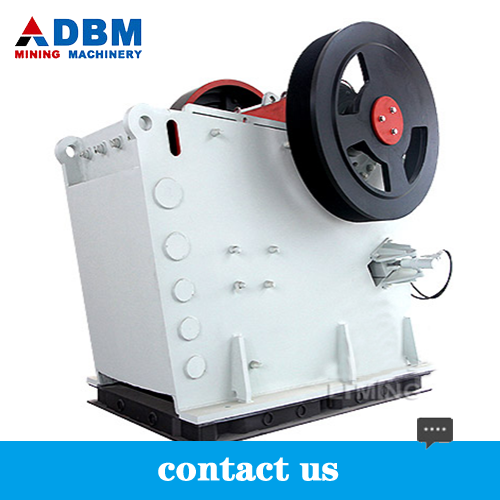

Industrial jaw crusher
Jaw crusher is also called PEW jaw crusher, PEW new jaw crusher. European jaw crusher is a new generation crusher developed on the basis of PE jaw crusher. European jaw crusher has the advantages of simple adjustment, strong pressure resistance, long service life and high output.
Feed Size Range：200-1000mm
Scope of production capacity：15-700 TPH
Scope of application：Widely used in mining, building materials, highways, railways, water conservancy and chemical industries in a variety of ore and bulk material crushing.
Suitable for material range：Hepebble, granite, basalt, iron ore, limestone, quartzite, diabase, iron ore, gold ore, copper ore, etc., all kinds of ores and rocks with compressive strength not exceeding 320 Mpa.
Successful case
Lafarge produces 500 tons of limestone sand production line
[production time]: April 2016
[Location]: Guizhou
[material]: limestone
[Yield]: 500t/h
[Equipment configuration]: feeder, jaw crusher, impact crusher, impact crusher and circular vibrating screen
[Location]: Guizhou
[material]: limestone
[Yield]: 500t/h
[Equipment configuration]: feeder, jaw crusher, impact crusher, impact crusher and circular vibrating screen
Africa 800 tons / hour limestone crushing production line
[production time]: 2016
[Location]: Luoyang, Henan
[material]: limestone
[Yield]: 800t/h
[Equipment configuration]: jaw crusher, hydraulic cone crusher, feeder, vibrating screen, feeding sieve, dust collector, etc.
[Location]: Luoyang, Henan
[material]: limestone
[Yield]: 800t/h
[Equipment configuration]: jaw crusher, hydraulic cone crusher, feeder, vibrating screen, feeding sieve, dust collector, etc.
Technical Parameter
Model | Feed size (MM) |
Maximum feed size （MM） |
outlet port range（MM） |
processing capacity （T/H） | power (KW) | Model size（MM） |
weight （T） |
PE 250*400 | 400*250 |
210 |
20-80 |
5-20 | 15 | 1450*1315*1296 |
2.8 |
PE 400*800 | 600*400 | 350 | 40-100 | 15-65 | 30 | 1700*1732*1653 | 6.2 |
PE 500*700 | 750*500 | 425 | 50-100 | 45-110 | 55 | 2035*1921*2000 | 11 |
PE 600*900 | 900*600 | 500 | 65-140 | 90-180 | 55-75 | 2290*2206*2370 | 16 |
PE 750*1060 | 1060*750 | 630 | 80-160 | 110-320 | 110 | 2655*2302*3110 | 29 |
PE 900*1200 | 1200*900 | 750 | 100-200 | 200-400 | 132 | 3380*2870*3330 | 545 |
PE 1200*1500 | 1500*1200 | 1020 | 150-300 | 400-800 | 180-220 | 4200*3750*3820 | 100.9 |
PEX 150*250 | 250*150 | 125 | 10-40 | 1-5 | 55 | 875*758*850 | 0.81 |
PEX 150*750 | 750*150 | 125 | 18-18 | 5-16 | 15 | 1200*1500*1200 | 3.8 |
PEX 250*400 | 400*250 | 210 | 20-80 | 15-30 | 22-30 | 1667*1545*1020 | 5 |
PEX 200*1000 | 1000*200 | 210 | 25-60 | 16-50 | 30-37 | 1530*1992*1380 | 7 |
PEX 250*1200 | 1200*250 | 210 | 25-60 | 20-60 | 37 | 1900*2192*1430 | 8 |
PEX 300*1300 | 1300*300 | 250 | 25-105 | 20-90 | 75 | 2720*1950*1600 | 11 |
